Solcellspaket 160W MPPT till Stuga
Komplett paket för stuga på 160W med en riktigt snabb MPPT-regulator
Lägg till en bevakning så meddelar vi dig så snart varan är i lager igen.
Solcellspaket 160W MPPT till Stuga
Komplett paket för stuga på 160W med en riktigt snabb MPPT-regulator
Stugpaket 160W (mono) med MPPT
Vi har tagit fram ett mycket attraktivt stugpaket på 160W solpanel och en MPPT-regulator 20A med LCD-display.

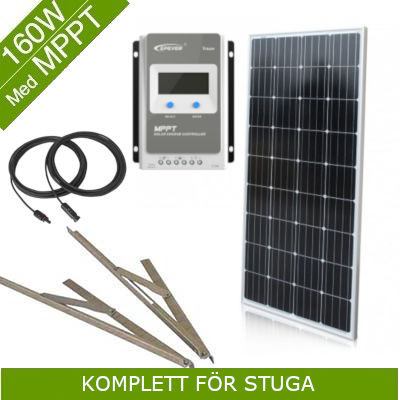

I paketet ingår:
› Solpanel 160W (50cm kabel med MC4-kontakter)
› MPPT-regulator Tracer 20A
› 14 meter solpanelskabel, 4mm² (se nedan)
› MC4-kontakt i par (1x hane - 1x hona)
› Väggkonsol för solpanel, justerbar
14 meter solpanelskabel är tänkt att delas enligt följande:
› 2 x 5 meter, plus & minus från solpanel till regulator
› 2 x 2 meter, plus & minus från regulator till batteri
Kabeln kan självklart kapas efter behov. Kortare kabel = mindre effektförlust. Försök hålla kabeln så kort som möjligt.
Kabelskor kan behövas för påkoppling vid batteriet beroende på vilket batteri och vilka batterikopplingar som används.
Tekniska data (Solpanel):
Effekt: 160W
Max laddström: 7,25A
Mått: 1230 x 670 x 30 mm (LxBxH)
Vikt: 12kg
Tekniska data (Regulator):
Systemspänning: 12-24V DC Auto
Max laddström: 20A
Max förbrukarutgång: 20A
Batterispänning: 8-32V
Max PV-spänning: 100V (92V vid 25°C)
Max Solpanel: 260W/520W (12V/24V)
Förbrukning: <12mA
Omgivningstemperatur: -25°C - +50°C (100% input + output)
Förvaringstemperatur: -20°C - +70°C
Relativ fuktighet: <95%, icke-kondenserande
Kapsling: IP30
Mått: 220x154x52 mm
Vikt: 0,94 kg
Max kabel: 16mm²
OBS: Manual på engelska, men vi hjälper såklart till vid funderingar.
